Pi Camera stop motion animation

In preparation for a Raspberry Pi event I decided to create a simple GUI for creating stop motion animations using the Pi camera module to use for a demo.

Its a really simple application, you start it up, you click "take image", you re-position the scene, you click "take image" and so on until you are happy with your animation and you click "save" to store it as an animated gif.

You can find the source code at goo.gl/4Xvu7b.

Install
1. Connect a camera module
2. Enable the camera (Menu > Preferences > Raspberry Pi Configuration, Interfaces, Camera)
3. Open a terminal (Menu > Accessories > Terminal), install the modules and download the code:

sudo pip3 install guizero
sudo pip3 install imageio
wget -O guizero_stopmotion.py https://goo.gl/zMTjas

4. Run the program:

python3 guizero_stopmotion.py

A couple of "interesting" things about this project

The gui was created using guizero which is a super simple to use library for creating GUI's, definitely have a look.

Most of the work was finding a way to create animated gifs in Python and working with images in memory rather than stored on disk

When the image is captured from the camera it isn't stored to a file, it is stored in a numpy array, this means each frame is only stored in memory making it faster:

# create the camera
camera = PiCamera(resolution="640x480")
camera_output = PiRGBArray(camera)
...
# capture the image
camera.capture(camera_output, "rgb")
# append the camera image to the list as a numpy array
animation.images.append(camera_output.array)

The python module imageio is used to create the gif by passing the frames as a list, but again rather than being written to disk each time it is created as an in memory BytesIO stream:

gif_output = BytesIO()
imageio.mimsave(gif_output, animation.images, format="gif")

When the animated gif is displayed in guizero the BytesIO stream has to be open into a PIL Image.

animation.image = Image.open(gif_output)

Get the weather using Python

I recently spent a hour or so hacking a lucky cat so that it would only wave when it was sunny.

At @Raspberry_Pi 's MakerDay I hacked a lucky cat so it only waves when it's sunny. pic.twitter.com/JUED5nYadt

— Martin O'Hanlon (@martinohanlon) June 9, 2018

It did this by pulling the weather data from Open Weather Map using the Python module pyowm.

1. Sign up for a free API key in Open Weather Map.

2. Install the pyown Python module, open a Terminal or Command Prompt and run:

Windows

pip install pyown

Raspberry Pi / Linux

sudo pip3 install pyown

MacOS

pip3 install pyown

3. Create a Python program using the following code, inserting your API key:

import pyowm

owm = pyowm.OWM('put api key here')

observation = owm.weather_at_place('Cambridge,GB')
w = observation.get_weather()

clouds = w.get_clouds()
wind = w.get_wind()
humidity = w.get_humidity()
temp = w.get_temperature('celsius')

print("{}, {}, {}, {}".format(clouds, wind, humidity, temp)

Note - it can take up to 60 minutes for your API key to be activated.

There is a lot more information which can be pulled back - have a look at the weather module documentation for more details.

Python - Creating shortcuts

I was recently working on the mu project (a Python IDE for beginners), which is super easy to install using pip, but there is no way to automate the creation of desktop and menu shortcuts.

This seemed like a really big miss, shortcuts are the usual way for people (and certainly beginners to launch applications).

So I set to creating a really simple way of creating shortcuts for Python applications.

Enter shortcut, a X platform (Windows, MacOS, Linux, Raspberry Pi) Python module for automatically creating shortcuts.

Its really simple to install and use:

pip3 install shortcut
shortcut name_of_app

It will find the location of the app and create desktop and menu shortcuts for it.

There is also a Python API which can be used to do the same:

from shortcut import ShortCutter
s = ShortCutter()
s.create_desktop_shortcut("python")
s.create_menu_shortcut("python")

You will find documentation at shortcut.readthedocs.io and code at github.com/martinohanlon/shortcut.

Setup Raspberry Pi Samba share

I almost always setup a samba share on every Raspberry Pi I install, it allows me to easily share files and work on my projects - so I thought I had better write down how I do it.
Install samba:

sudo apt-get install samba

Modify the Samba config file to add a share called pihome which points to the /home/pi directory:

sudo nano /etc/samba/smb.conf

Scroll to the bottom and add the following:

protocol = SMB2

[pihome]
   comment= Pi Home
   path=/home/pi
   browseable=Yes
   writeable=Yes
   only guest=no
   create mask=0644
   directory mask=0755
   public=no

Setup a samba password for the Pi user:

sudo smbpasswd -a pi

Restart the samba service:

sudo service smbd restart

You should now be able to connect to your Pi using the address:

//ip_address_of_pi/pihome

Slack command line stream

I thought a Slack console might be useful, a very simple client I could display on an always on screen, so I did some experimenting with the Slack Developer Kit for Python and made a super simple command line program which streams messages.

It is most definitely a starting point rather than a finished solution, but someone might find it useful.

Setup (assuming you are using a Raspberry Pi / Linux computer, although it will work on Windows as well).

1. Generate a security token for the slack group you want to stream.

2. Create an environment variable SLACK_API_TOKEN and put your security token in it.

Edit /etc/profile adding the export to the bottom:

sudo nano /etc/profile
export SLACK_API_TOKEN=[my super long token]

3. Install slackclient and colorama using pip:

sudo pip3 install colorama
sudo pip3 install slackclient

4. Download the slack_stream.py from gist:

wget https://gist.githubusercontent.com/martinohanlon/477b6ea4c3bdc679ddff92dfc3bff4a7/raw/8ec39d08a9501b25d381ac3b008e9cf7be92377a/slack_streamer.py

5. Run it:

python3 slack_streamer.py

Python Bluetooth RFCOMM Client Server

As part of the Blue Dot project I needed to create a simple Bluetooth client / server library so that the communication could be managed. This library, btcomm, is part of bluedot but its not exclusive and can be used for Bluetooth communication in Python.

It uses a 2 way RFCOMM communication - you can send messages to and from 2 devices, 1 being the server which waits for connections, 1 being the client which makes a connection.

Install the library

sudo apt-get install python3-dbus
sudo pip3 install bluedot

Pairing

The 2 devices you which want to communicate between will need to be paired, the Blue Dot documentation describes how to pair 2 raspberry pi's which might be useful.

Simple Client / Server Example

Lets create a simple example, a server which waits for connections and when it receives data it echo's it back to the client.

Create a new Python program and save it as btserver.py:

from bluedot.btcomm import BluetoothServer
from signal import pause

def data_received(data):
    print(data)
    s.send(data)

s = BluetoothServer(data_received)
pause()

Create a 2nd program and save it as btclient.py:

from bluedot.btcomm import BluetoothClient
from signal import pause

def data_received(data):
    print(data)

c = BluetoothClient("nameofyourserver", data_received)
c.send("helloworld")

pause()

Run the server and then run the client, the client should connect and "Hello World" will be sent to the server and displayed on the screen, the server will then send the same "Hello World" message back to the client, which will print it to the screen.

Adapter

There is also a useful API for accessing the Bluetooth adapter allowing you to get its current status, power it on/off, make it discoverable or find the devices its paired with.

from bluedot.btcomm import BluetoothAdapter

a = BluetoothAdapter()

print("Powered = {}".format(a.powered))
print(a.paired_devices)
a.allow_pairing()

Documentation

There is comprehensive documentation for the btcomm library, which describes the API and how to use it.

Mac OS - Check Java version before running script

I needed to check what version of Java was installed on a Mac before running my program, so with the help of stackoverflow and a few other resources I pulled together the following bash script which checks to see if the version of Java is greater than 1.8 before continuing.

# Work out the JAVA version we are working with:
JAVA_VER_MAJOR=""
JAVA_VER_MINOR=""
JAVA_VER_BUILD=""

# Based on: http://stackoverflow.com/a/32026447
for token in $(java -version 2>&1 | grep -i version)
do
    if [[ $token =~ \"([[:digit:]])\.([[:digit:]])\.(.*)\" ]]
    then
        JAVA_VER_MAJOR=${BASH_REMATCH[1]}
        JAVA_VER_MINOR=${BASH_REMATCH[2]}
        JAVA_VER_BUILD=${BASH_REMATCH[3]}
        break
    fi
done

#check version is greater than 1.7 (i.e. at least 1.8)
if [ "$JAVA_VER_MAJOR" -gt "1" ]; then
    echo start your program
elif [ "$JAVA_VER_MINOR" -gt "7" ]; then
    echo start your program
else
    echo ERROR - Java needs to be updated.
    echo Currently installed version is $JAVA_VER_MAJOR.$JAVA_VER_MINOR - 1.8 is required
fi

Raspberry Pi Touchscreen Portrait

I recently wanted to turn my Raspberry Pi Official Touchscreen portrait (i.e. sideways!), which turns out is a bit of pain.

Turning the display is relatively easy but making the touch work is more difficult - there was a set of instructions on the Raspberry Pi forum, but a recent update to Jessie meant they no longer worked, so I pulled this set of instructions together:

Install xinput:

sudo apt-get install xinput

Rotate the display by editing config.txt:

sudo nano /boot/config.txt

 .. add this to the buttom of the file:

display_rotate=1

Use Ctrl X, Yes to Save
Create a script to rotate the touchscreen:

nano /home/pi/touch_rotate.sh

 .. add the following command

xinput --set-prop 'FT5406 memory based driver' 'Coordinate Transformation Matrix'  0 1 0 -1 0 1 0 0 1

Make the script executable:

chmod +x touch_rotate.sh

Make the script run when the GUI starts by editing autostart:

sudo nano ~/.config/lxsession/LXDE-pi/autostart

 .. add this to the bottom to run your script

@/home/pi/touch_rotate.sh

Reboot:

sudo reboot

Blue Dot - a bluetooth remote for Raspberry Pi

Blue Dot is a really simple way to add Bluetooth remote control to your Raspberry Pi projects.

I created Blue Dot after being asked many times at Picademy “how can I get rid of all these wires?”.

Blue dot is an android app (client) and really easy to use Python library which allows you to wirelessly control your Python projects, whether that is a light switch, remote camera, robot or anything else you can think of!

See the getting started guide for more info on 'getting started', or follow the tutorial below.

Installation & Use
These instructions assume your Raspberry Pi is running the latest version of Raspbian with Pixel.

You will need a Raspberry Pi with built-in Bluetooth (such as the Pi 3 or Pi Zero W) or a Raspberry Pi and a USB Bluetooth dongle.

Get the app
Download and install the Blue Dot app from the google play store.

If you are wondering why there is no iOS app? Its because iOS doesn't support Bluetooth serial comms; you can only really talk to 'standard devices' (cars, speakers, fitness trackers, etc).

Python library
Open a terminal (Menu > Accessories > Terminal) and type:

sudo apt-get install python3-dbus
sudo pip3 install bluedot

Or if you need to use Python 2 (please dont tho!):

sudo apt-get install python-dbus
sudo pip install bluedot

Pairing
In order to communicate over Bluetooth securely you need to pair your phone to your Raspberry Pi.

On your Android phone:

1. Open Settings
2. Select Bluetooth
3. This will make your phone Discoverable

Using your Raspberry Pi

1. Click the bluetooth icon on the taskbar
2. Turn on Bluetooth (if its off)
3. Click Make Discoverable
4. Click Add Device
5. Your phone will appear in the list, select it and click Pair
6. Enter a PIN code

On your Android phone

1. Enter the same PIN code when prompted
2. Click Ok

Code
The simplest way to use the Blue Dot is as a button:

1. Open Python 3 (Menu > Programming > Python 3)
2. Create a new file (File > New File)
3. The following code, will start up the Blue Dot, and wait for it to be pressed:

from bluedot import BlueDot
bd = BlueDot()
bd.wait_for_press()
print("You pressed the blue dot!")

4. Save your program (File > Save) as mydot.py
5. Run your program (Run > Run Module)
6. Open the Blue Dot app
7. Connect to your Raspberry Pi
8. Press the Blue Dot

As well as waiting for something to happen you can also call functions when the button is pressed, released or the position its pressed moves.

from bluedot import BlueDot
from signal import pause

def say_hello():
    print("Hello World")

def say_goodbye():
    print("goodbye")

bd = BlueDot()
bd.when_pressed = say_hello
bd.when_released = say_goodbye

pause()

By using the position of where the button is pressed you can use the Blue Dot like a joystick:

from bluedot import BlueDot
from signal import pause

def dpad(pos):
    if pos.top:
        print("up")
    elif pos.bottom:
        print("down")
    elif pos.left:
        print("left")
    elif pos.right:
        print("right")
    elif pos.middle:
        print("fire")

bd = BlueDot()
bd.when_pressed = dpad

pause()

Add to this gpiozero's Robot functions, you can create a Bluetooth controlled robot with very little code.

from bluedot import BlueDot
from gpiozero import Robot
from signal import pause

bd = BlueDot()
robot = Robot(left=(lfpin, lbpin), right=(rfpin, rbpin))

def move(pos):
    if pos.top:
        robot.forward()
    elif pos.bottom:
        robot.backward()
    elif pos.left:
        robot.left()
    elif pos.right:
        robot.right()

def stop():
    robot.stop()

bd.when_pressed = move
bd.when_moved = move
bd.when_released = stop

pause()

Check out the Blue Dot documentation for more information and ideas - you really can do a lot with a simple circle :)

Raspberry Pi - 4 digit 7 Segment display, gpiozero

I recently picked up some 'retro 4 digit LED displays' from pimoroni, noticing there was no support in gpiozero for 7 segment displays (either single or multi digit) I decided to add them and create a pull request.

This builds on the code I created for driving single 7 segment displays.

Hopefully the PR will get added into a gpiozero release soon, but until then add this code to your project and use the following to drive your display.

#setup the pins

#these are the pins the LED are connected too
# (in the order A, B, C, D, E, F, G, decimal point)
LED_PINS = (7, 22, 25, 17, 8, 27, 4, 24)
#these are the pins the digits are connected too
DIGIT_PINS = (23, 18, 15, 14)

#create the multi seven segment display
# use active_high=True when digit pins are cathode (ground)
multi_sev = MultiSevenSegmentDisplay(LED_PINS, DIGIT_PINS,
                                     active_high=True)

#display your message
multi_sev.display("LEDS")

#turn off the display using
multi_sev.off()

The display function works by plexing the display, turning the LEDs on one at a time, so quickly it tricks the eye into thinking the display is showing 1 message.

Raspberry Pi - bash memory split check

I needed a bash script which would only launch a program on a Raspberry Pi if there was enough memory dedicated to the GPU.

I pulled this script together which checks to see if there is at least 128 MB dedicated to the GPU before starting the program.

#!/bin/bash

#check there is enough gpu memory to start
#get the gpu memory and output to a file called gpu_mem
vcgencmd get_mem gpu > gpu_mem
source gpu_mem
#strip last char from the output (i.e. 64M)
gpu=${gpu%?}
if (( $gpu >= 128 )); then
    ./launch_program
else
    echo "The program needs at least 128MB of memory allocated to the GPU"
    echo "Use sudo raspi-config (Advanced Options > Memory Split) to change"
fi
#remove the gpu_mem file
rm gpu_mem

Compile Allegro 5.x for Raspberry Pi

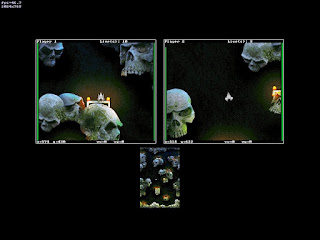

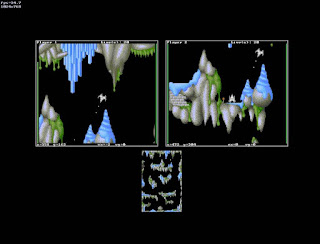

I am in the process of porting Mayhem 2 to Allegro 5 (with the help of Jonas Karlsson), and wanted to compile the latest version of Allegro on the Pi, as only an older version is available through apt.

Install the dependencies

sudo apt-get install build-essential git cmake cmake-curses-gui xorg-dev libgl1-mesa-dev libglu-dev libpng-dev libcurl4-nss-dev libfreetype6-dev libjpeg-dev libvorbis-dev libopenal-dev libphysfs-dev libgtk2.0-dev libpulse-dev libflac-dev libdumb1-dev

Get the Code

git clone https://github.com/liballeg/allegro5.git
cd allegro5

Check out the version you want - see here for a list of versions

git checkout 5.2.1

Build it

mkdir build
cd build
cmake .. -DCMAKE_TOOLCHAIN_FILE=../cmake/Toolchain-raspberrypi.cmake
make

Install it

sudo make install
export PKG_CONFIG_PATH=/home/pi/allegro5/build/lib/pkgconfig
sudo ldconfig

Raspberry Pi, 7 Segment Display, gpiozero

I've been working on an update to gpiozero to add a 7 segment display - hopefully this will make it into gpiozero soon, but until then if you want to use a 7 segment display with your Raspberry Pi you can follow the details below.

Update - I have updated this to support single and multiple digit 7 segment displays.

Wire it up

The seven segment display will have 7 pins to connect the digit's LEDs, 1 pin to connect the decimal point LED and 1 pin which is the common pin.

The LED pins should connect to 8 GPIO pins depending on whether your 7 segment display is a common-anode or a common-cathode the common pin should connect to either a 3.3v pin or the ground. Your also going to need a suitable resistor (probably a 330) between your GPIO and LED pins.

Wired up as a common-anode

Code

Create a new program and add the following to the top of the your program (this is the class which will allow you to control the display).

from gpiozero import LEDBoard, OutputDeviceError, LEDCollection

class SevenSegmentDisplay(LEDBoard):
    """
    Extends :class:`LEDBoard` for a 7 segment LED display

    7 segment displays have either 7 or 8 pins, 7 pins for the digit display
    and an optional 8th pin for a decimal point. 7 segment displays
    typically have either a common anode or common cathode pin, when
    using a common anode display 'active_high' should be set to False.
    Instances of this class can be used to display characters or control
    individual leds on the display. For example::

        from gpiozero import SevenSegmentDisplay

        seven = SevenSegmentDisplay(1,2,3,4,5,6,7,8,active_high=False)
        seven.display("7")

    :param int \*pins:
        Specify the GPIO pins that the 7 segment display is attached to.
        Pins should be in the LED segment order A,B,C,D,E,F,G,decimal_point
        (the decimal_point is optional).

    :param bool pwm:
        If ``True``, construct :class:`PWMLED` instances for each pin. If
        ``False`` (the default), construct regular :class:`LED` instances. This
        parameter can only be specified as a keyword parameter.

    :param bool active_high:
        If ``True`` (the default), the :meth:`on` method will set all the
        associated pins to HIGH. If ``False``, the :meth:`on` method will set
        all pins to LOW (the :meth:`off` method always does the opposite). This
        parameter can only be specified as a keyword parameter.

    :param bool initial_value:
        If ``False`` (the default), all LEDs will be off initially. If
        ``None``, each device will be left in whatever state the pin is found
        in when configured for output (warning: this can be on). If ``True``,
        the device will be switched on initially. This parameter can only be
        specified as a keyword parameter.

    """
    def __init__(self, *pins, **kwargs):
        # 7 segment displays must have 7 or 8 pins
        if len(pins) < 7 or len(pins) > 8:
            raise ValueError('SevenSegmentDisplay must have 7 or 8 pins')
        # Don't allow 7 segments to contain collections
        for pin in pins:
            assert not isinstance(pin, LEDCollection)
        pwm = kwargs.pop('pwm', False)
        active_high = kwargs.pop('active_high', True)
        initial_value = kwargs.pop('initial_value', False)
        if kwargs:
            raise TypeError('unexpected keyword argument: %s' % kwargs.popitem()[0])

        self._layouts = {
            '1': (False, True, True, False, False, False, False),
            '2': (True, True, False, True, True, False, True),
            '3': (True, True, True, True, False, False, True),
            '4': (False, True, True, False, False, True, True),
            '5': (True, False, True, True, False, True, True),
            '6': (True, False, True, True, True, True, True),
            '7': (True, True, True, False, False, False, False),
            '8': (True, True, True, True, True, True, True),
            '9': (True, True, True, True, False, True, True),
            '0': (True, True, True, True, True, True, False),
            'A': (True, True, True, False, True, True, True),
            'B': (False, False, True, True, True, True, True),
            'C': (True, False, False, True, True, True, False),
            'D': (False, True, True, True, True, False, True),
            'E': (True, False, False, True, True, True, True),
            'F': (True, False, False, False, True, True, True),
            'G': (True, False, True, True, True, True, False),
            'H': (False, True, True, False, True, True, True),
            'I': (False, False, False, False, True, True, False),
            'J': (False, True, True, True, True, False, False),
            'K': (True, False, True, False, True, True, True),
            'L': (False, False, False, True, True, True, False),
            'M': (True, False, True, False, True, False, False),
            'N': (True, True, True, False, True, True, False),
            'O': (True, True, True, True, True, True, False),
            'P': (True, True, False, False, True, True, True),
            'Q': (True, True, False, True, False, True, True),
            'R': (True, True, False, False, True, True, False),
            'S': (True, False, True, True, False, True, True),
            'T': (False, False, False, True, True, True, True),
            'U': (False, False, True, True, True, False, False),
            'V': (False, True, True, True, True, True, False),
            'W': (False, True, False, True, False, True, False),
            'X': (False, True, True, False, True, True, True),
            'Y': (False, True, True, True, False, True, True),
            'Z': (True, True, False, True, True, False, True),
            '-': (False, False, False, False, False, False, True),
            ' ': (False, False, False, False, False, False, False),
            '=': (False, False, False, True, False, False, True)
        }

        super(SevenSegmentDisplay, self).__init__(*pins, pwm=pwm, active_high=active_high, initial_value=initial_value)

    def display(self, char):
        """
        Display a character on the 7 segment display

        :param string char:
            A single character to be displayed
        """
        char = str(char).upper()
        if len(char) > 1:
            raise ValueError('only a single character can be displayed')
        if char not in self._layouts:
            raise ValueError('there is no layout for character - %s' % char)
        layout = self._layouts[char]
        for led in range(7):
            self[led].value = layout[led]

    def display_hex(self, hexnumber):
        """
        Display a hex number (0-F) on the 7 segment display

        :param int hexnumber:
            The number to be displayed in hex
        """
        self.display(hex(hexnumber)[2:])

    @property
    def decimal_point(self):
        """
        Represents the status of the decimal point led
        """
        # does the 7seg display have a decimal point (i.e pin 8)
        if len(self) > 7:
            return self[7].value
        else:
            raise OutputDeviceError('there is no 8th pin for the decimal point')

    @decimal_point.setter
    def decimal_point(self, value):
        """
        Sets the status of the decimal point led
        """
        if len(self) > 7:
            self[7].value = value
        else:
            raise OutputDeviceError('there is no 8th pin for the decimal point')

    def set_char_layout(self, char, layout):
        """
        Create or update a custom character layout, which can be used with the
        `display` method.

        :param string char:
            A single character to be displayed

        :param tuple layout:
            A 7 bool tuple of LED values in the segment order A, B, C, D, E, F, G
        """
        char = str(char).upper()
        if len(char) != 1:
            raise ValueError('only a single character can be used in a layout')
        if len(layout) != 7:
            raise ValueError('a character layout must have 7 segments')
        self._layouts[char] = layout

Create the display

Create an instance on the 7 segment display object, you need to pass the pins in the order, A,B,C,D,E,F,G,Decimal Point.

seven_seg = SevenSegmentDisplay(20, 21, 6, 22, 27, 18, 15, 13)

If you have a common-anode display you will also need to set the active_high parameter to False:

seven_seg = SevenSegmentDisplay(20, 21, 6, 22, 27, 18, 15, 13,
                                active_high=False)

Display a character

You can show a character on the display using the .display() method.

seven_seg.display("8")

Add a new character

You can add your own characters to the display, using the .set_char_layout() method passing the character and a tuple of 7 booleans for each of the LEDs in order A,B,C,D,E,F,G.

seven_seg.set_char_layout("_", (False, False, False, True, False, False, False))
seven_seg.display("_")

Decimal point

You can turn the decimal point on by setting the .decimal_point property.

seven_seg.decimal_point = True

Microbit making Minecraft Earthquakes

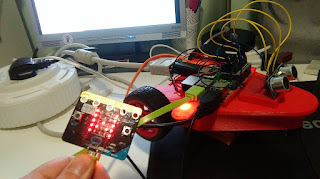

In this tutorial you are going to connect your Microbit up to your Raspberry Pi and program them so that when your Microbit is shaken it creates an earthquake in Minecraft.

This is part of a workshop I delivered at PyConUK 2016 - download the complete worksheet.

You are going to connect your micro:bit’s pins to the Raspberry Pi gpio pins using some cables and crocodile clips; programs on the micro@bit and Raspberry Pi will make Steve shake in Minecraft.

Install mu
To put you python program on your Micro:bit you will need the editor mu.

Open a Terminal (Menu > Accessories > Terminal) and type:

sudo apt-get update
sudo apt-get install mu

Angry micro:bit
The first task is to program your micro:bit so it gets angry when it's shaken.

• Connect your micro:bit to the Raspberry Pi using the USB cable.
• Open mu to create a new Python program for your micro:bit by clicking on Menu > Programming > mu.
• Click New and type the following code into the editor.

from microbit import *
while True:
    if accelerometer.current_gesture() == "shake":
        display.show(Image.ANGRY)
    else:
        display.show(Image.HAPPY)

• Click Flash to put your program on your micro:bit.

When the yellow light on the back of your micro:bit stops flashing your program will run.
You should see a happy face on your micro:bit - until it’s shaken!

Any errors will be scrolled on your micro:bit’s leds; if you get an error check your code carefully.

Pins

Now you need to finish your micro:bit program so that it turns pin 0 on and off when it's shaken

• Go back to Mu and modify your program so that it turns pins 0 on (1) and off (0) when shaken.

from microbit import *
while True:
    if accelerometer.current_gesture() == "shake":
        display.show(Image.ANGRY)
        pin0.write_digital(1)
    else:
        display.show(Image.HAPPY)
        pin0.write_digital(0)

• Click Flash to put your program on your micro:bit.

Connect it up
Next you will use a jumper cable and a crocodile clip to connect your micro:bit to the Raspberry Pi.

• Connect the jumper cable to GPIO17 on the Raspberry Pi
• Clip the crocodile clip to the end of the jumper cable
• Clip the other end of the crocodile clip to pin0 on the micro:bit

Shake Steve
You now need to create your Minecraft program to shake Steve when the micro:bit is shaken and pin0 is set to 1.

• Click Menu > Games > Minecraft: Pi Edition to run the game.
• Click Start Game, then click Create New (or choose an existing one) to enter a world:
• Press ESC to go back to the Minecraft menu but leave the game playing.
• Open Python IDLE by clicking Menu > Programming > Python 3.
• Use File > New Window to create a new program and save it as ‘mc_micro.py’.
• Type the following code into the program to import the modules you will need

from mcpi.minecraft import Minecraft
from gpiozero import DigitalInputDevice
from time import sleep

• Create a connection to Minecraft using the code.

mc = Minecraft.create()

• Post a message to the chat window.

mc.postToChat("Micromine bitcraft earthquake")

• Run your program by clicking Run > Run Module.

You should see your message appear in the Minecraft chat window.

Any errors will be displayed in the Python Shell in red.

Update your program to shake Steve, by adding the following code at the bottom of your program.

• Create a pin which is connected to Pi GPIO 17 and micro:bit pin 0.

pin0 = DigitalInputDevice(17)

• Create a loop which constants gets Steve’s position.

while True:
    sleep(0.1)
    pos = mc.player.getPos()

• If pin0 is on (1) it adds 0.5 to Steve’s height (y).

    if pin0.value == 1:
        pos.y = pos.y + 0.5
        mc.player.setPos(pos)

• Run your program by clicking Run > Run Module.

Shake your micro:bit and Steve will be shaken in Minecraft.

Challenges

Can you change the program so that it creates a more realistic earthquake by adding random values to the x, y, z values.

Complete the worksheet from PyConUK 2016 which includes using the micro:bit buttons to makes blocks disappear and appear.

Mayhem 2 - an open source cave shooter

I recently ported an abandoned version the classic amiga game, Mayhem, to the Raspberry Pi - I did this exclusively so I could play the game with my friend, Lee, using RetroPie.

Since then myself and Lee, an artist for sumo digital, have been modding the game, adding new levels, features and controls - it now really is Mayhem 2.

Mayhem 2 is available for Windows and Raspberry Pi.

I'm hoping there will be lots more features and changes to the game over the coming months, if anyone has any idea's or would like to contribute it would be great to hear from you.

Gameplay

Mayhem 2 is a multiplayer (2 - 4) flight shooter with a really simple objective - destroy your opponents before they destroy you.

Your ship has limited fuel which will run down when you boost, if you run out you will be unable to control your ship, to refuel, land on any flat surface.

You can protect yourself from attack using your shields which will stop all bullets, be careful though your shields run down quickly and you wont be able to boost while your shields are on.

Power -ups are dropped (sometimes) when a player is destroyed (by either crashing or being shot) and when collected will give you a temporary boost such as a triple-shot weapon, better shields or more thrust.

New levels have been added including new ones with no edges, where you can seamlessly fly across the edge of the map.

Options

Levels 1-3 are the original game levels, all other levels are new to Mayhem 2.

DCA are anti spaceship guns which will fire at the player if they get too close.

Wall collision can be turned off for new players to get used to the controls and playing the game.

Controls

Mayhem 2 supports  joystick and keyboard control, joystick controls can be configured via the main menu.

Default joystick controls, assume an "xbox / ps like" joystick:

Control	Action
Stick 1	Left / Right
Button 1 (A)	Thrust
Button 2 (B)	Shield
Button 6 (RB)	Fire

If joysticks are connected, they are used as the players controls, if there are less than 4 joysticks connected, keys are used for the rest of the players in order:

Key	Left	Right	Shield	Thrust	Fire
1	z	x	c	v	g
2	left	right	pad del	pad 0	pad enter
3	b	n	,	m	l
4	y	u	o	i	0

Install

For windows:

Download the zip file from https://github.com/martinohanlon/mayhem/archive/master.zip, open and copy mayhem-master to a folder.

Double click Mayhem2.exe in the mayhem-master folder.

Note - You maybe presented with message saying that the application was stopped from starting as it is unrecognised, click 'more info' and and choose 'run anyway'.

For Raspberry Pi:

Open a terminal and type:

sudo apt-get install liballegro4.4 liballegro4-dev
git clone https://github.com/martinohanlon/mayhem-pi

Run using:

cd mayhem-pi
./start

Code

The full source code is available on GitHub for Windows and Raspberry Pi.

Raspberry Pi - Playing a Sound File with Python

A question I get asked a lot in Picademy is how to I play a sound file using Python.

Using just whats on the standard Raspbian image the easiest way, IMO, is to use Pygame.

This small code snippet below shows you how. Just put the wav file in the same place as your program.

import pygame
from time import sleep

#Initialise pygame and the mixer
pygame.init()
pygame.mixer.init()

#load the sound file
mysound = pygame.mixer.Sound("mysound.wav")

#play the sound file for 10 seconds and then stop it
mysound.play()
time.sleep(10)
mysound.stop()

You will have to use wav files, as opposed to other sounds files such as mp3, ogg, etc - use media.io to convert them.

Mayhem, Amiga game, ported to Raspberry Pi

Update - I've taken Mayhem forward to create Mayhem 2.

I had a Commodore Amiga and a game I played, a lot, was Mayhem, its a multiplayer (2-4) shooter - imagine multiplayer asteroids, with gravity, fuel and shields!

It was ported to the PC in 2002 by devpack who released the code in 2011 on github and google code which is where I picked it up and ported it to the Raspberry Pi.

This is the port, but check out the original Amiga game.

I got some help from the Raspberry Pi forums in getting it to compile then it was case of sorting out a few case sensitive filename bugs (it was original written for Windows!) and tracking down a bug in the original code which was causing a memory access error and segmentation fault.

The code is on github.com/martinohanlon/mayhem-pi.

Install

sudo apt-get install liballegro4.4 liballegro4-dev
git clone https://github.com/martinohanlon/mayhem-pi

Run

cd mayhem-pi
./start

Keys
Player 1 - z, x, c, v, g
Player 2 - left, right, pad del, pad 0, pad enter
Player 3 - b, n, 'comma', m, l
Player 4 - y, u, o, i, 0
Change level - 1, 2, 3

Compile
If you want to modify the game, I've got a couple of things on my list, you can recompile it with.

cd mayhem-pi
make

Raspberry Pi - Take screenshots of Minecraft

If you going to take a screenshot of Minecraft: Pi edition (or anything else for that matter), I really like a command line utility called raspi2png, its simple and screenshots images which have been created using the GPU (like games) as well.

Download
Open a terminal and clone the repository from github:

cd ~
git clone https://github.com/AndrewFromMelbourne/raspi2png

Use
Change directory to raspi2png and run the program's help to show all the options:

cd ~/raspi2png
./raspi2png --help

Usage: raspi2png [--pngname name] [--width ] [--height ] [--compression ]
[--delay ] [--display ] [--stdout] [--help]

    --pngname,-p - name of png file to create (default is snapshot.png)
    --height,-h - image height (default is screen height)
    --width,-w - image width (default is screen width)
    --compression,-c - PNG compression level (0 - 9)
    --delay,-d - delay in seconds (default 0)
    --display,-D - Raspberry Pi display number (default 0)
    --stdout,-s - write file to stdout
    --help,-H - print this usage information

To take screenshot you have to use the -p option and pass an image filename:

./raspi2png -p myscreenshot.png

Another really useful option is -d to delay when to take the picture, this enables you to get the screen ready for a shot - to take a picture delayed by 10 seconds:

./raspi2png -p mydelayedshot.png -d 10

The image files will be created in the ~/raspi2png directory - if you want them in a different directory use a full path:

./raspi2png -p /home/pi/mydir/myscreenshot.png

If you use a filename which already exists raspi2png will overwrite the file without warning and the old image will be lost.

Fyi - I wrote this blog post using a Raspberry Pi 3...  First time I've used a Pi to write about a Pi - thats progress!

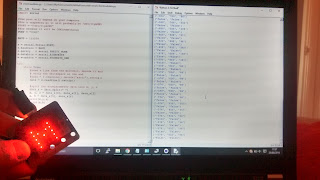

Microbit - get data from USB

As part of my Minecraft, a Microbit and an X-Wing project, I used the USB to read data from the Microbit's accelerometer and buttons to make the X-Wing move.

@NCSComputing on twitter has started re-using the code to make other things happen, so thought it would be a good idea to write up how it works, so others can do the same.

To make this work you need one program which runs on the Microbit and prints data and a second runs on your computer (a Raspberry Pi, PC, Mac, anything with a USB port) which reads the data via a serial connection.

See github.com/martinohanlon/microbit-serial for the code for both of these programs.

The Microbit
The microbitreaddata.py python program runs on the Microbit, gets the data and prints it to the output, which in this case is the USB serial connection, and should be flashed to your computer using the Python editor:

from microbit import *

REFRESH = 500

def get_data():
    x, y, z = accelerometer.get_x(), accelerometer.get_y(), accelerometer.get_z()
    a, b = button_a.was_pressed(), button_b.was_pressed()
    print(x, y, z, a, b)

def run():
 while True:
  sleep(REFRESH)
  get_data()

display.show('M')
run()

Your Computer
The clientreaddata.py python program runs on the computer and reads the data using pyserial:

import serial

#the port will depend on your computer
#for a raspberry pi it will probably be /dev/ttyACM0
#PORT = "/dev/ttyACM0"
#for windows it will be COM(something)
PORT = "COM3"

BAUD = 115200

s = serial.Serial(PORT)
s.baudrate = BAUD
s.parity   = serial.PARITY_NONE
s.databits = serial.EIGHTBITS
s.stopbits = serial.STOPBITS_ONE

try:
    while True:
        #read a line from the microbit, decode it and
        # strip the whitespace at the end
        data = s.readline().rstrip()

        #split the accelerometer data into x, y, z
        data_s = data.split(" ")
        x, y, z = data_s[0], data_s[1], data_s[2]
        a, b = data_s[3], data_s[4]
        print(x,y,z)
        print(a,b)

finally:
    s.close()

The values of the accelerometer will be put into the variables x, y, z and the buttons in a & b.

Setting the PORT
You will have to change the PORT variable in the clientreaddata.py program to the comm port that the Microbit is connected to on your computer.

For a Raspberry Pi it is probably "/dev/ttyACM0", in the event it isn't, unplug the Microbit and run:

ls /dev/tty*

Then plug the Microbit and run the command again, the new device which appears will be the port of your Microbit.

For Windows it will be "COM#", the # being a number, the easiest way is to look in Device Manager for the "mBed Serial Port (COM#)"

Raspberry Pi gpiozero holdable button

The current release of gpiozero doesn't have the support to hold a button down e.g. when a button is pressed and then held down for 1 second something happens.

This is really useful when building hardware projects and you want 1 button to do 2 things, say turn something on when pressed, and turn off when held down.

I needed this for a project so I thought I would create a new HoldableButton class using gpiozero. Hopefully this will be incorporated into gpiozero, but until then you can use the class below.

The code is also available here as a gist.

You will need to add the HoldableButton class to your Python program:

from gpiozero import Button
from threading import Timer

class HoldableButton(Button):
    def __init__(self, pin=None, pull_up=True, bounce_time=None,
                 hold_time=1, repeat=False):

        super(HoldableButton, self).__init__(pin, pull_up, bounce_time)

        # Set Button when_pressed and when_released to call local functions
        # cant use super() as it doesn't support setters
        Button.when_pressed.fset(self, self._when_button_pressed)
        Button.when_released.fset(self, self._when_button_released)

        self._when_held = None
        self._when_pressed = None
        self._when_released = None
        self._is_held = False

        self.hold_time = hold_time
        self.repeat = repeat
        self._held_timer = None

    #override button when_pressed and when_released
    @property
    def when_pressed(self):
        return self._when_pressed

    @when_pressed.setter
    def when_pressed(self, value):
        self._when_pressed = value

    @property
    def when_released(self):
        return self._when_released

    @when_released.setter
    def when_released(self, value):
        self._when_released = value

    @property
    def when_held(self):
        return self._when_held

    @when_held.setter
    def when_held(self, value):
        self._when_held = value

    @property
    def is_held(self):
        return self._is_held

    def _when_button_pressed(self):
        self._start_hold()
        if self._when_pressed != None:
            self._when_pressed()

    def _when_button_released(self):
        self._is_held = False
        self._stop_hold()
        if self._when_released != None:
            self.when_released()

    def _start_hold(self):
        self._held_timer = Timer(self.hold_time, self._button_held)
        self._held_timer.start()

    def _stop_hold(self):
        if self._held_timer != None:
            self._held_timer.cancel()

    def _button_held(self):
        self._is_held = True
        if self._when_held != None:
            if self.repeat and self.is_pressed:
                self._start_hold()
            self._when_held()

Using the HoldableButton class is pretty simple, similar to the gpiozero Button class and can be swapped for the Button class with no other changes.

holdbutton = HoldableButton(pin, hold_time = 1, repeat = False)

You have to pass a pin number and optional hold_time and repeat values:

• hold_time - is the number of seconds after the button is pressed before the button is consider 'held'
• repeat - is a boolean and if set to True will occur 'button held' events to be repeated after each hold_time

You can use all the same methods and properties of the Button class, when_pressed, when_released, is_pressed, etc.

There are 2 additional properties is_held, which will return a boolean stating whether the button has been held down for the 'hold_time' and when_held which when assigned a function will cause the function to be called when the button is held down.

def myheldfunction():
    print("button held")

holdbutton.when_held = myheldfunction

Now when a button is held down, the function will be called and "button held" printed.
